Technical Parameters
|
Image Sensor |
1/3" CMOS |
|
Horizontal Resolution |
800TVL |
|
TV system |
PAL/NTSC |
|
Effective pixels |
720(H) x 480(V) |
|
Min.Illumination |
Color: 0.01Lux/F1.2（0Lux IR ON） |
|
S/N Ratio |
≥47.1dB（AGC OFF) |
|
Lens |
2.33mm |
|
Visual Angle |
Horizontal angle of view 120 degrees |
|
Electronic Shutter |
AUTO/1/50（1/60）-1（100，000Sec） |
|
Video output |
1.0V p-p Composite Output 75ohm |
|
IR LEDs |
5pcs LEDs |
|
IR distance |
5M |
|
Ingress Protection |
Ip67 |
|
Operating Temperature |
-20°C~+70°C |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
≤2W |

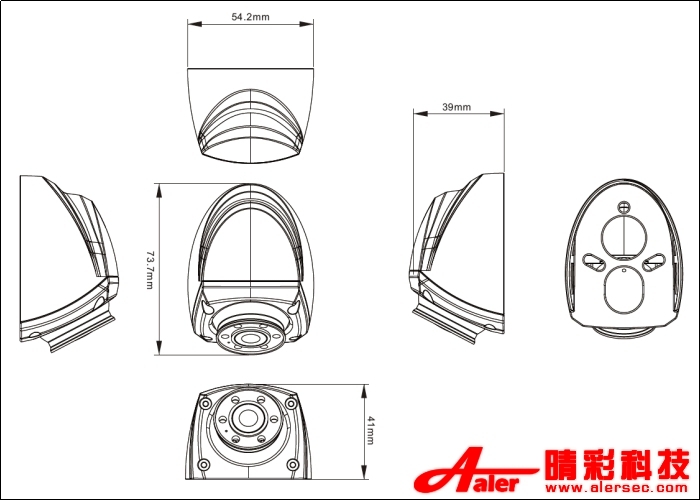

Dimension:
|
