AL-MD5B
Sony 1/3 CCD sensor ; 540TVL/600TVL/700TVL; Lens:2.8mm,3.6mm,4.3mm,6mm optional; Infrared 10 LEDs; Waterproof IP67; Indoor,Outdoor Camera

  • Product Detail

Model

AL-MD5B-600
Pick up Device 1/3” Sony 639CCD + NextChip 2040 DSP
TV System PAL
Picture Elements 752Hx582V
Horizontal Resolution 600TVL
Sensitivity 0 Lux at F1.2 (LED On)
Scanning System 625TVL/2:1 Interlace
Synchronization Internal
S/N Ratio More Than 50 dB, (AGC Off)
IR LED 10 LEDs with 850nm
Infrared range 3 Meter
Auto Gain Control Auto
White Balance Auto
Electronic Shutter Auto
Back Light Compensation Auto
Mirror Optional
Video Output 1 Vp-p, 75ΩComposite
Audio Available
Gamma Ratio 0.45
Lens Standard f3.6mm Fixed Iris Lens
Lens Mount M12XP0.5mm Thread
Pan Adjusting +/-180 Degree
Tilt Adjusting 0-62 Degree
Power Supply 12V DC ±10%
Power Consumption 190mA
Dimensions (ø X H) 77 x 60.3 mm
Net Weight 200 g
Weatherproof IP67
Operating Temperature -25°C to +65°C

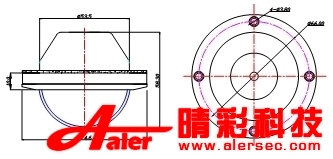

Dimension:
