School Bus CCTV Monitoring System Solution

Posttime:2013-11-05 22:19:51


                                                 Alersec  School Bus  CCTV Security Solution



     Students are the brilliant and splendid future of our world. The security of students and teachers and the safety of the school bus are the foremost concern of Aler, same as for parents and school administrators. The advantages of having 3G network video monitoring system on the school bus are varied:
Restrict inappropriate behavior such as bullying, fighting etc.;
For teacher to protects student efficiently and ensure the bus driver can fully focus on driving;
Incidents such as vandalism and destruction of school bus property will be recorded;
Files and data captured can be used as evidence for lawsuit or insurance claim purposes.


 1.1 Why we need to install the 3G network video monitoring system on the school bus?

  1.1.1 The potential issues of school bus.
  1、School bus inclines driving over speed.
  2、Driving do not base on the regular routes.
  3、Departure and arriving do not on time.

  1.1.2 The requirements from parents.
  Students lack of social experience, so they are vulnerable under risk and emergency. On the way from home to the bus, parents cannot see their child in sight
and will feel worry about them. 3G network video monitoring system on the school bus helps parents viewing the condition of the school bus on mobile phone instantly.
  1.1.3 Responsibility from school.
  School has the responsibility to ensure the security of students when they get on the school bus. 3G network video monitoring system on the school bus lets teacher
know the situation of the school bus and condition of their students anytime, anywhere.

  1.2 Specific functions of the 3G network video monitoring system on the school bus www.alersec.com.

  School bus is the vehicle special for the delivery of students on the way between home and school. Usually, there is only one driver special for one school bus,
so the driver is easy become fatigued. The school bus is not easy to be managed and accidents happened occasionally. 3G network video monitoring system will generate
alarm when it identify the driver is in long time driving status. The driver can also press the emergence button when emergency happens. Surveillance devices can capture
 the recording video files as evidence when accidents happened. Operation data (such as the mileage, ACC open/close time) of the school bus is constantly transferred from
the MDVR (mobile digital video recorder) to the monitoring center by 3G network, and they are useful for the analyzer to finish the running reports about each school bus.
  On the monitoring center, the status of all the school bus fleet can be known from the PC installed CMS client software. By the GPS positioning function, you can know
the location of each school bus and calculate the approximate speed of it. The system can reduce the chance of accidents caused by over speed driving and fatigue driving.

  Cameras within the school bus are monitoring two doors, aisle and students on the seat by video, monitoring the driver is driving safely. Cameras without are responsible
for monitoring the lane on both side of the school bus. Audio capturing device can capture surrounding voice almost without noise.

   7 inch TFT display beside the driver is for teacher to view the students’ behavior from the display directly

    8 channel alarm input and output setting. The position, speed, turning status etc. all can be recorded. And the track and mileage of the school bus can be recorded
and shown on the CMS client.


      Over speed driving is forbidden for passenger’s safety on the school bus.

      CMS client on the mobile helps monitor the real time situation of the school bus anytime, anywhere.


      Chapter 2: The Main Structure of CMS platform.

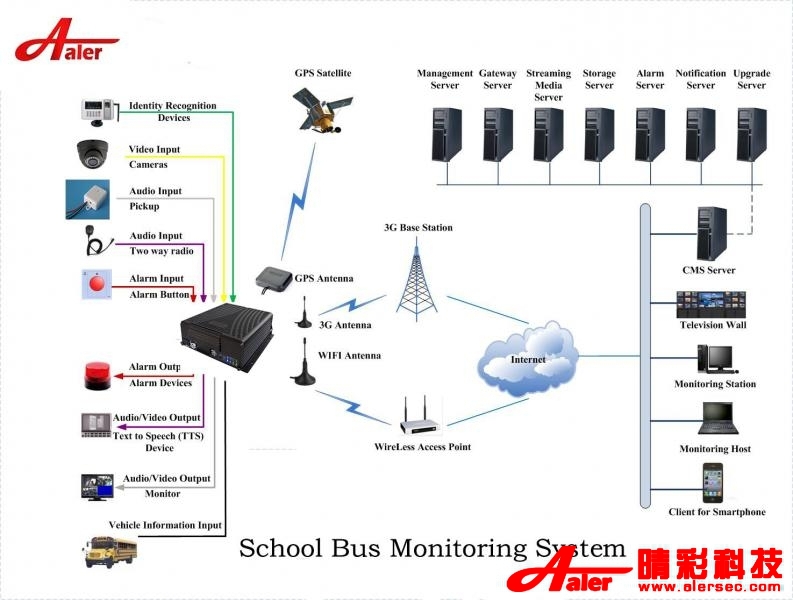

    The surveillance of school bus monitoring system is composed of MDVR, CMS server and monitoring center.

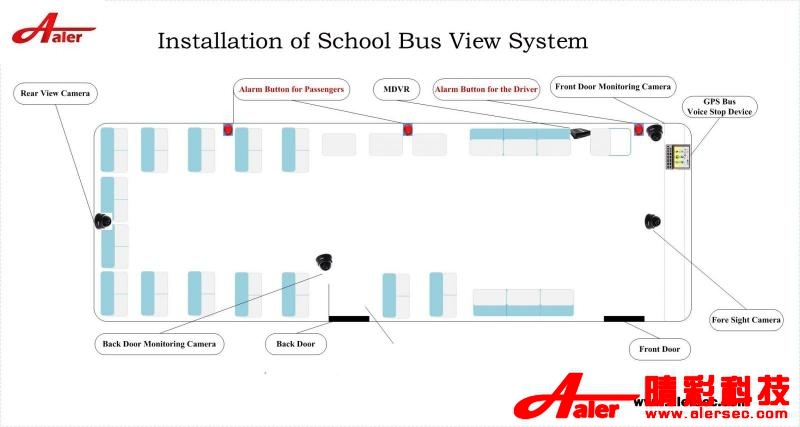

       2.1.1 Layout of the school bus monitoring system.


2.1.2 The instruction of school bus monitoring system.

Camera for front view: Monitoring the road condition in front of the school bus.

   Camera for front door: Monitoring the condition of the front door, driver and teacher.

Camera within the school bus (two cameras totally): monitoring the students.

   Emergency button for the driver: Call the CMS platform when the driver feels in emergency.

Monitor: Display single or multichannel monitoring video for driver and teacher.

   ID registering device: Record the students, teacher and driver entrance and exit time.




School Bus CCTV Monitoring system solution download link
